C Series Capstan Winches
- C series capstans have specially designed drums that have traction and grip equal to larger drums of typical design.
- The CH version provides a powerful, heavy duty unit in a compact, portable size.
- Can handle up to 1 inch diameter rope. If used often with ropes larger than 3/4 inch, the larger L series is recommended.
- Large heavy duty, slow turning hydraulic motors assure a long life.
- All of the CH models shown below are available with either a 30, 50 or 70 size drive unit. The model suffix designates the style of winch.
- A CH 70 is about 3 pounds heavier than a CH 50 and a CH 50 is about 4 pounds heavier than a CH 30.
- The CL version has the same size capstan and a lighter, less powerful drive unit for applications where less capacity is needed.

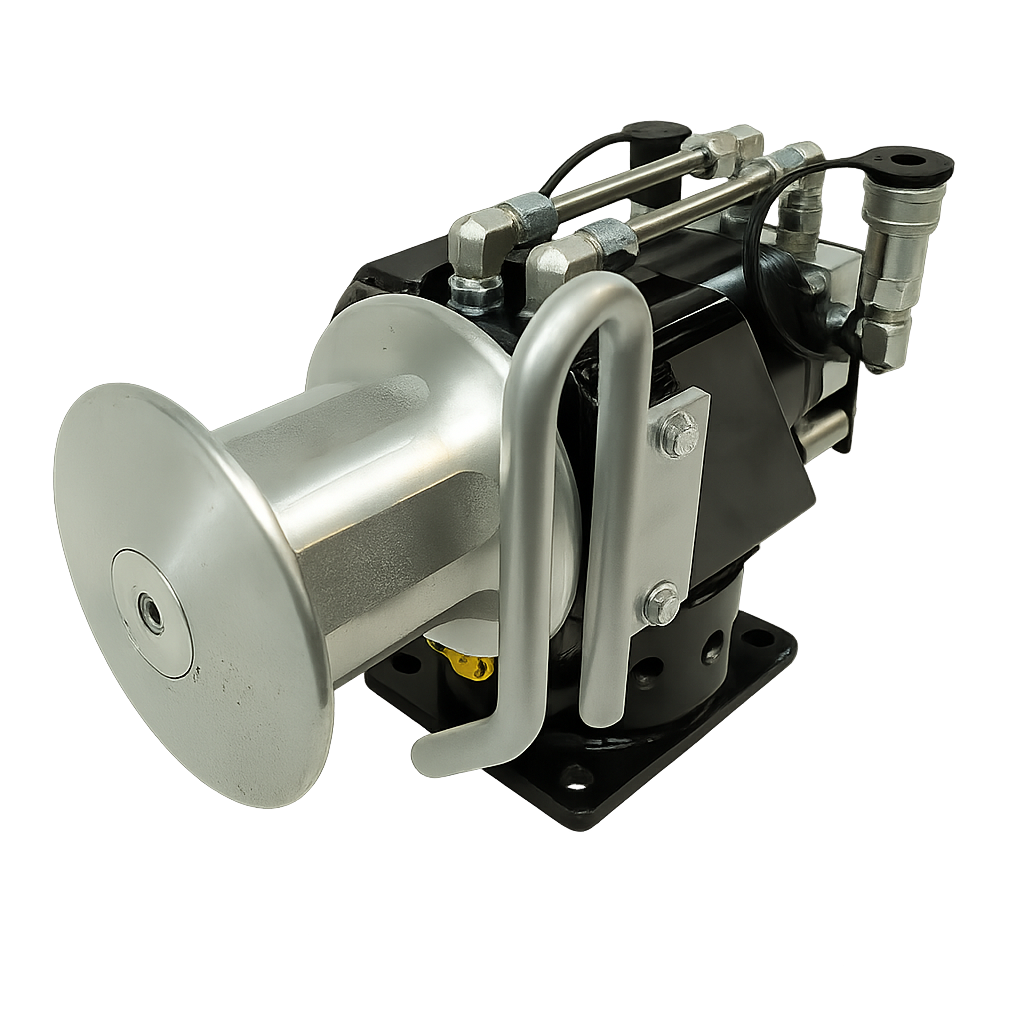

CH 70-RF
with Double Counter Balance Valve
- with Double Counter Balance Valve

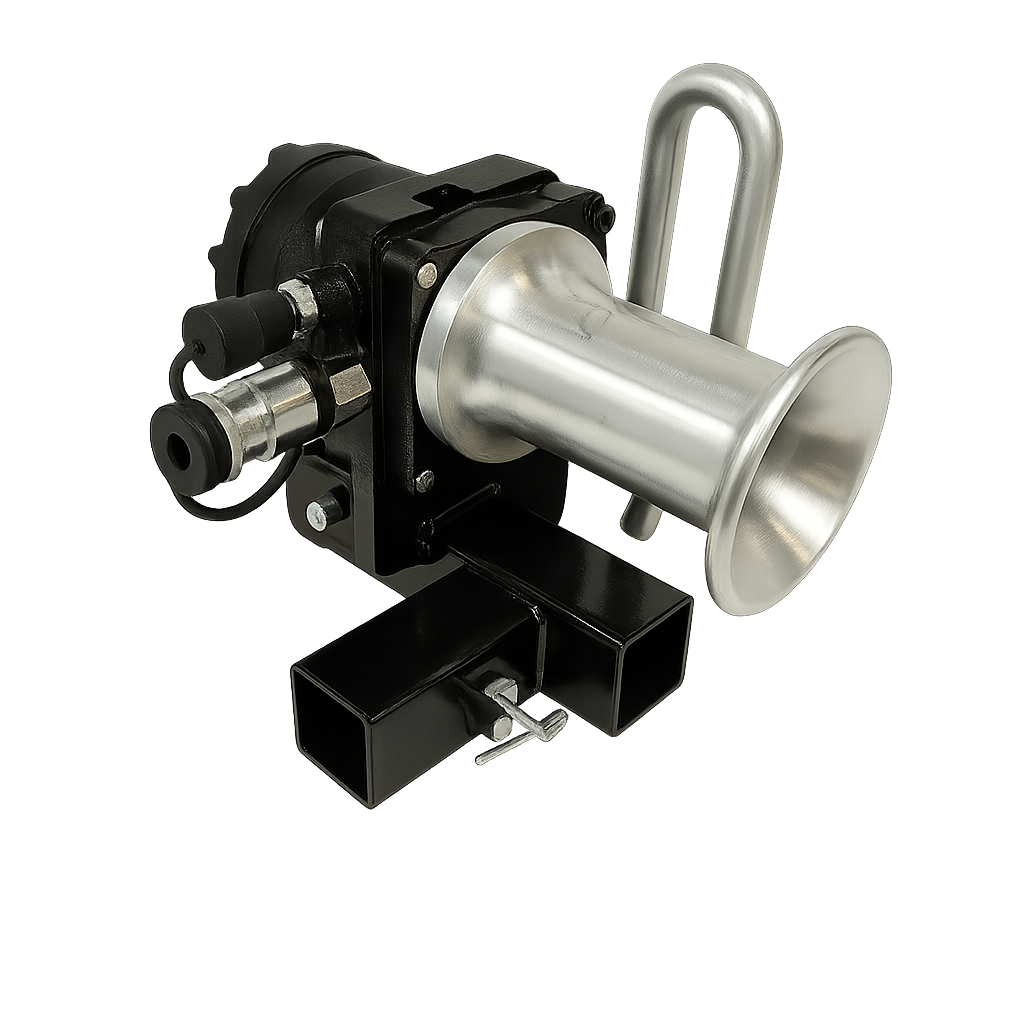

- Adapter Mount
- Can be used with a receiver hitch. See the Winch Options page for information and receiver connections
- Often used with our portable hydraulic power units that have flow control valves for variable speed
- Quick couplings come standard on the adapter mount versions
- Dimensions: 10-1/2 in. high x 9 in. wide x 14 in. long
- Weight: 77 lb
CH 50-V
- Vertical capstan.
- Compact winch requires a minimal amount of space.
- Pressure fed lubrication solves upper bearing lubrication problems associated with some vertical capstan designs.
- Dimensions: 16 in. high, 6 in. x 6 in. column (8 in. diagonal), 8-1/2 in. x 8-1/2 base flange.
- Weight: 75 lb.
CL 30-F
- Fixed mount shown. Also available with RF and A style mounts.
- Shown with optional rope guide.
- Dimensions: 7-1/2 in. high (w/o hyd. fittings or rope guide) x 6-3/4 in. wide x 14 in. long.
- Weight: 58 lb.
More C Series Capstan Winch Models
CL 30-F
- Fixed mount shown. Also available with RF and A style mounts.
- Shown with optional rope guide.
- Dimensions: 7-1/2 in. high (w/o hyd. fittings or rope guide) x 6-3/4 in. wide x 14 in. long.
- Weight: 58 lb.
CH 70-RCP
- Rail car puller.
- Attaches to the rail without tools.
- For use on level tracks.
- Speeds should be kept under 40 ft./min.
- Requires room for adequate car stopping distance or using a block behind the car to pull away from the winch.
- Rope guide and quick couplings are standard on RCP versions.
- Dimensions: 16-1/2 in. high x 8in. wide x 14-3/4 in. long.
- Weight: 83 lb. with attachments.
CL 30-RF
- Rotating base version.
- Base rotates 360 degrees.
- 60 positions. Base locks in 6 degree increments.
- Can be customized with a Rope Guide.
- Dimensions: 10 in. high (w/o hyd. fittings or rope guide) x 6-3/4 in. wide x 14" long.
- Weight: 69 lb.
W Series Capstan Winches
- Wide drum can be used with ropes up to 5/8 inch diameter.
- Smaller and lighter weight than C series winches.
WP-30-A
with Rope Guide Attachment
- Adapter mount for easy installation
- Can be mounted on the ACP Pivot Link
- Can be used with the ACP Manhole Vault Kits
- Weight is approximately 75 lbs
WP-30-SP
Simple Rope Guide
built in with WP Capstan Spool
- Built in Rope Guide
- Can be customized with most available options
L Series Capstan Winches
The large capstan on the L series is advantageous when working at higher speeds or with larger diameter ropes.
The LH is the heavy duty version. The LS version is the same basic winch with a lighter and less powerful drive unit. The LS series is well suited for higher speed applications where less capacity is needed.
L series capstan winches have the following features:
-
- Large 11 inch diameter drum with a 7 inch diameter x 7 inch wide working surface.
- Fully machined working surface to minimize rope fraying and wear.
- Space saving design with a large portion of the drive unit located inside the capstan drum.
- Large heavy duty, slow turning hydraulic motors for a long life.
- Pressure fed hydraulic lubrication eliminates maintenance and internal corrosion.
- Three mounting styles are available for all models. The model number suffix indicates the type of mount.
LH 7-F
- Fixed mount version. Also available with RF or RC mounts.
- Dimensions: 12 1/4 in. high x 11 1/4 in. wide x 15 3/4 in. long.
- Weight: 110 lbs
LH 7-RF
- RF style rotating base. The RF pivot is offset to the capstan. This allows the capstan to swing out so the rope can clear vehicles or fixtures.
- Base rotates 360 degrees
- 60 positions. Base locks in 6 degree increments
- The winch can be lifted off of the base when the locking pin is removed.
- Dimensions: 14 1/2 in. high x 11 1/4 in. wide x 17 in. long.
- Weight: 125 lb.
LHB 7-RC
- The RC mount has the same features as the RF version, except the pivot is located in the center of the winch. The RC requires less room to rotate 360 degrees. RF or F mounts are also available on the LHB models.
- The LHB series have a spring applied, hydraulically released, multi-disc wet brake. All of the L series winches brake hydraulically. Internal hydraulic clearances can allow the capstan to slowly creep back. The brake holds the capstan so the load can be held for an extended period of time without drifting out of position.
- The spring brake also provides additional protection in the event of a hydraulic failure.
- Comes standard with a manifold style mount dual counterbalance valve. See Winch Options page for more information on counterbalance valves.
- The brake is located inside the capstan as a space saving feature.
- Reversible. Brake and counterbalance valves operate in both directions.
- A case drain is required on LHB versions only.
- Dimensions: 16 in. high x 12 in. wide x 16 in. long.
- Weight: 140 lb.
LS 5-RC
- All LS models are also available with RF or F mounts.
- The ratchet type action locks the capstan in the reverse direction only. The winch brakes and holds the load hydraulically. The drum lock eliminates any hydraulic creep and allows the load to be held for an extended period of time without drifting out of position. See Winch Options page for more information about the drum lock.
- Without the drum lock option, the back rim of the LS Capstans have no notches and are smooth like the LH Capstans.
- Dimensions: 16 in. high (without drum lock option) x 12 in. wide x 15 1/2 in. long.
- Weight: 116 lb. (without drum lock).
Specifications
C Series
| Model | Maximum continuous line pull and operating pressure | Maximum continuous line speed and oil flow | ft. / min. at 4 gpm | ft. / min. at 6 gpm |
| CH 70 | 3500 lb. @ 1500 psi | 110 ft. / min. @ 16 gpm | 27 | 40 |
| CH 50 | 3500 lb. @ 2200 psi | 150 ft. / min. @ 16 gpm | 37 | 56 |
| CH 30 | 2500 lb. @ 2850 psi | 200 ft. / min. @ 12 gpm | 67 | 100 |
| CL 3 | 1800 lb. @ 2000 psi | 190 ft. / min. @ 12 gpm | 62 | 95 |
L Series
| Model | Maximum continuous line pull and operating pressure | Maximum continuous line speed and oil flow | ft. / min. at 4 gpm | ft. / min. at 6 gpm |
| LH 7 | 3500 lb. @ 2500 psi | 160 ft. / min. @ 16 gpm | 40 | 60 |
| LHB 7 | 3200 lb. @ 2300 psi | 140 ft. / min. @ 14 gpm | 40 | 60 |
| LS 5 | 2300 lb. @ 2200 psi | 220 ft. / min. @ 16 gpm | 55 | 83 |
| LS 3 | 1500 lb. @ 2600 psi | 300 ft. / min. @ 12 gpm | 100 | 150 |
W Series
| Model | Maximum continuous line pull and operating pressure | Maximum continuous line speed and oil flow | ft. / min. at 4 gpm | ft. / min. at 6 gpm |
| WP 3 | 2400 lb. @ 2000 psi | 86 ft. / min. @ 8 gpm | 43 | 65 |
Performance With ACP Hydraulic Power Units
C Series
| Model | HB 7-4 2000 psi @ 4 gpm | HB 7-6 1300 psi @ 6 gpm |
| CH 70 | 3500 lb.** ------- 27 ft. / min. | 3000 lb. ---------- 40 ft. / min. |
| CH 50 | 3200 lb. ---------- 37 ft. / min. | 2100 lb. ---------- 56 ft. / min. |
| CH 30 | 1800 lb. ---------- 67 ft. / min. | 1150 lb. ---------- 100 ft. / min. |
| CL 3 | 1800 lb. ---------- 62 ft. / min. | 1150 lb. ---------- 95 ft. /min. |
L Series
| Model | HB 7-4 2000 psi @ 4 gpm | HB 7-6 1300 psi @ 6 gpm |
| LH 7 or LHB 7 | 2800 lb. ---------- 40 ft. / min. | 1800 lb. ---------- 60 ft. / min. |
| LS 5 | 2100 lb. ---------- 55 ft. / min. | 1350 lb. ---------- 83 ft. / min. |
| LS 3 | 1150 lb. ---------- 100 ft. / min. | 750 lb. ----------150 ft. / min. |
W Series
| Model | HB 7-4 2000 psi @ 4 gpm | HB 7-6 1300 psi @ 6 gpm |
| WP 3 | 2400 lb. ---------- 43 ft. / min. | 1550 lb. ---------- 65 ft. / min. |
** Pressure relief settings are adjusted to not exceed maximum winch operating pressure.
- Line pull and speed are based on 5/8 in. dia. rope.
- We recommend selecting the lowest practical operating pressure. This will increase the life of the hydraulic components.
Product List - Contact Us for Pricing
CH 30-F
CH 50-F
CH 50-RCP
CH 70-F
CH 30-RF
CH 50-RF
CH 70-RF
CH 30-A, with rope guide, quick couplings
CH 50-A, with rope guide, quick couplings
CH 70-A, with rope guide, quick couplings
CH 30-V
CH 50-V
CH 70-V
CH 70- RCP, with rope guide, quick couplings
CL 3-F
CL 3-RF
CL 3-A, with rope guide, quick couplings
LS 3-F
LS 5-F
LS 3-RF or LS 3-RC
LS 5-RF or LS 5-RC
LH 7-F
LH 7-RF or LH 7-RC
LHB 7-F
LHB 7-RF or LHB 7-RC
WP 3-A, with rope guide & quick couplings
WP 3-SP, built in rope guide & quick couplings
C series rope guide
L series attachment plate
Quick couplings with dust covers (1 pr.)
2H-15 (pair of 15 ft. hydraulic hoses with quick couplings)
HB-7 hydraulic power supply
